Marine Bollards Overview

Marine bollards are the fundamental link between a vessel and the quay, serving as the silent guardians of port safety.They are engineered to withstand immense horizontal and vertical tension generated by wind, strong currents, and tidal surges. A high-quality bollard ensures that even the largest container ships and tankers remain securely moored, preventing catastrophic collisions, hull damage, or structural failure at the pier. In the high-stakes environment of international maritime logistics, the reliability of a bollard is the primary safeguard for both multi-million dollar assets and human lives.

Vailable in various industry-standard designs:

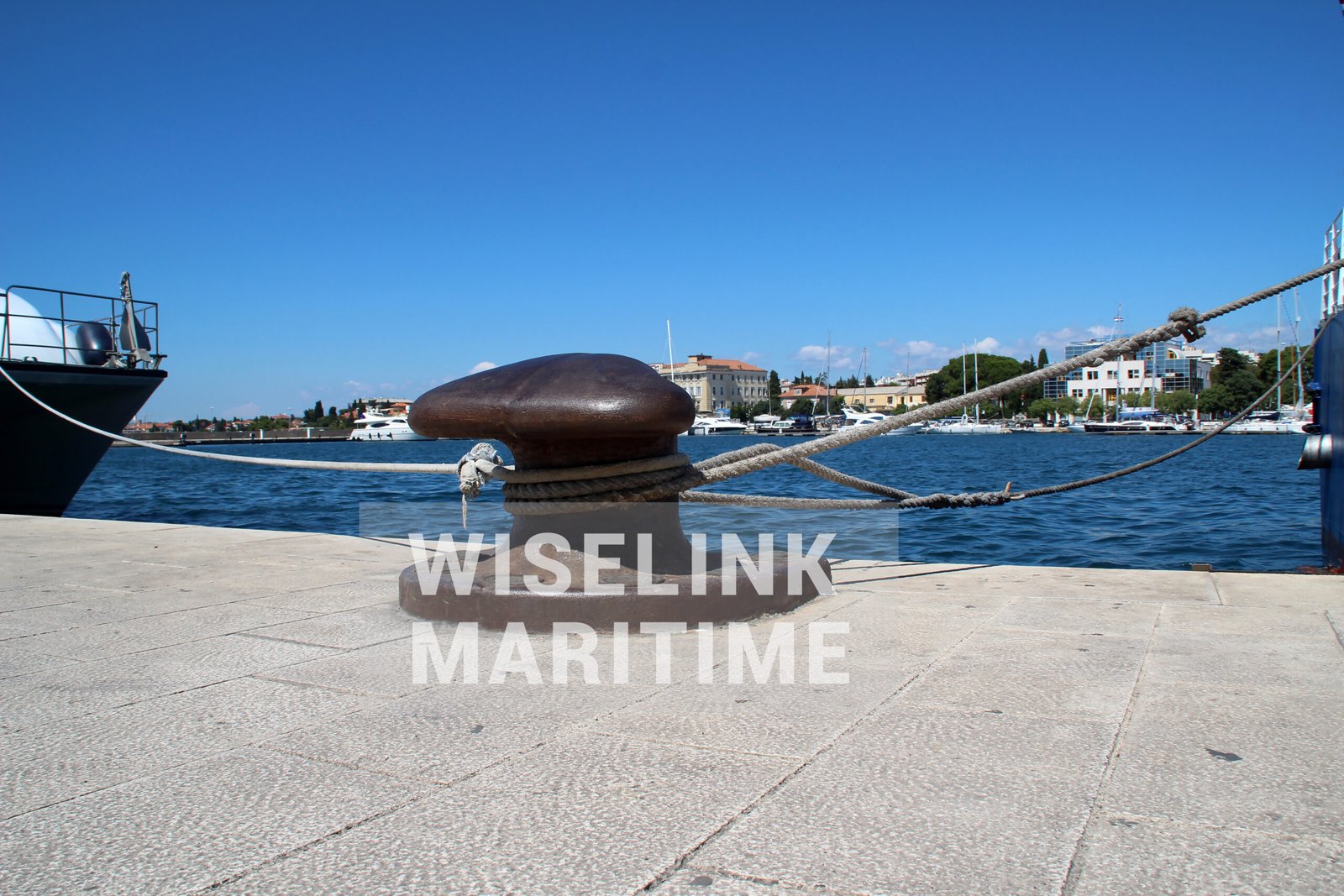

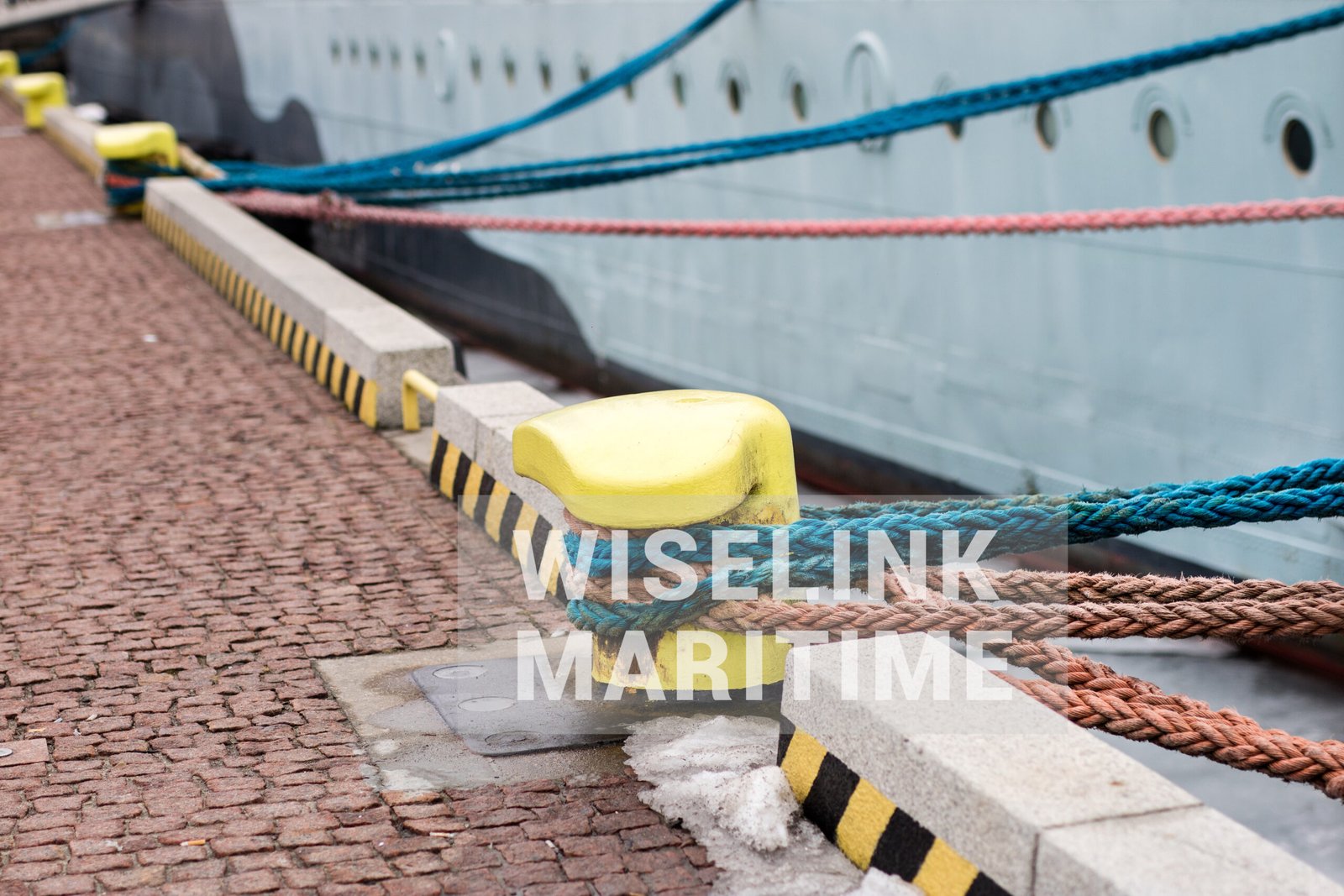

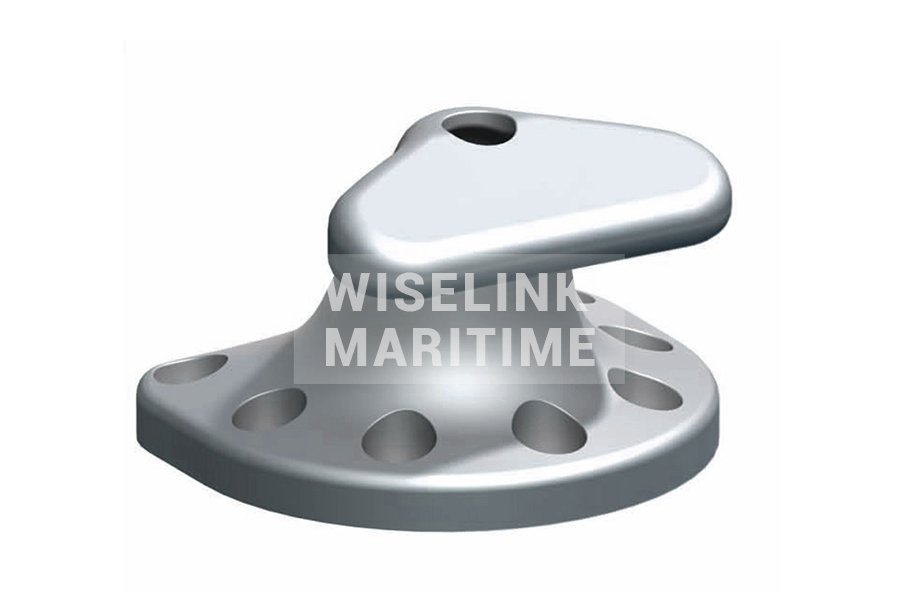

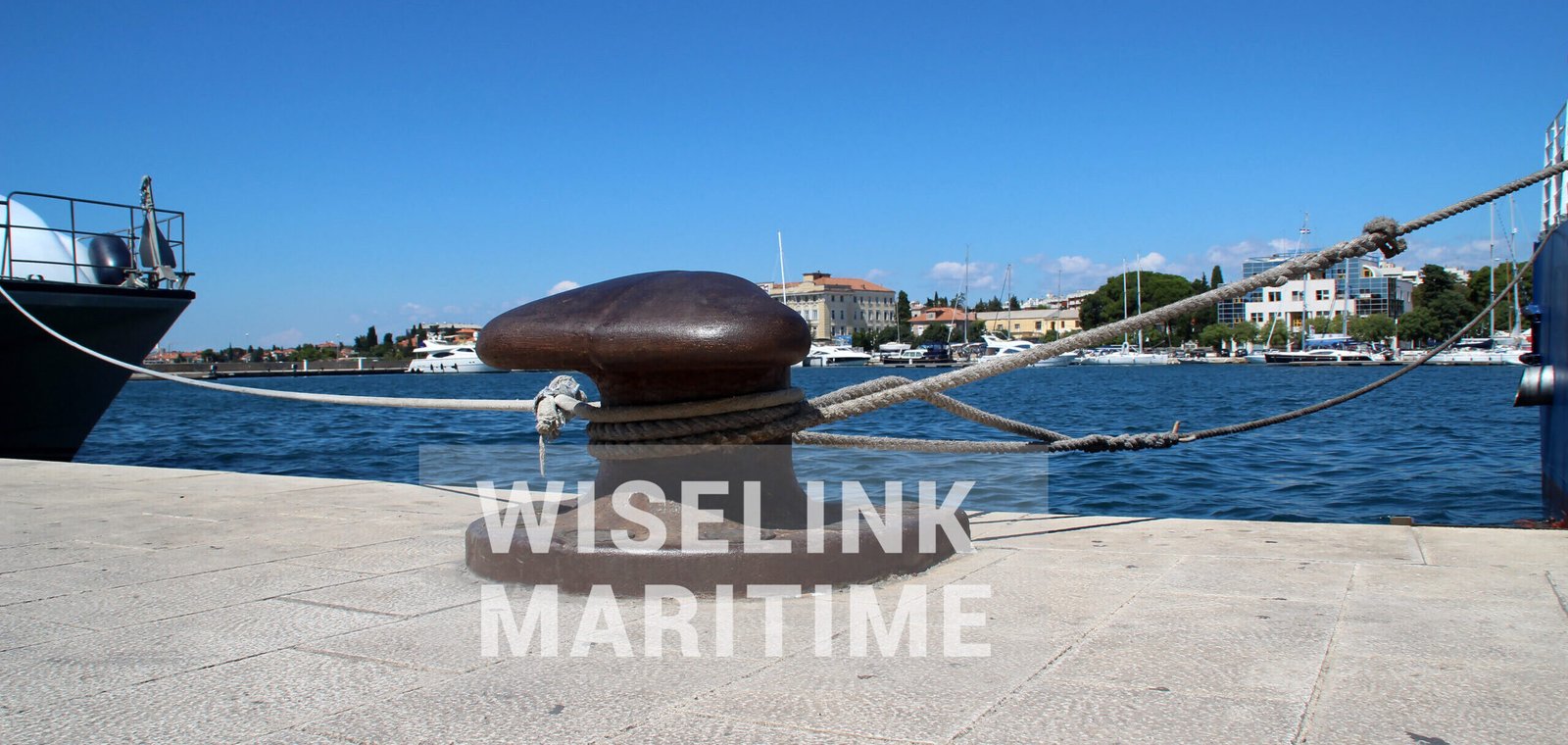

T-Head (T-Bollard): Ideal for high line angles.

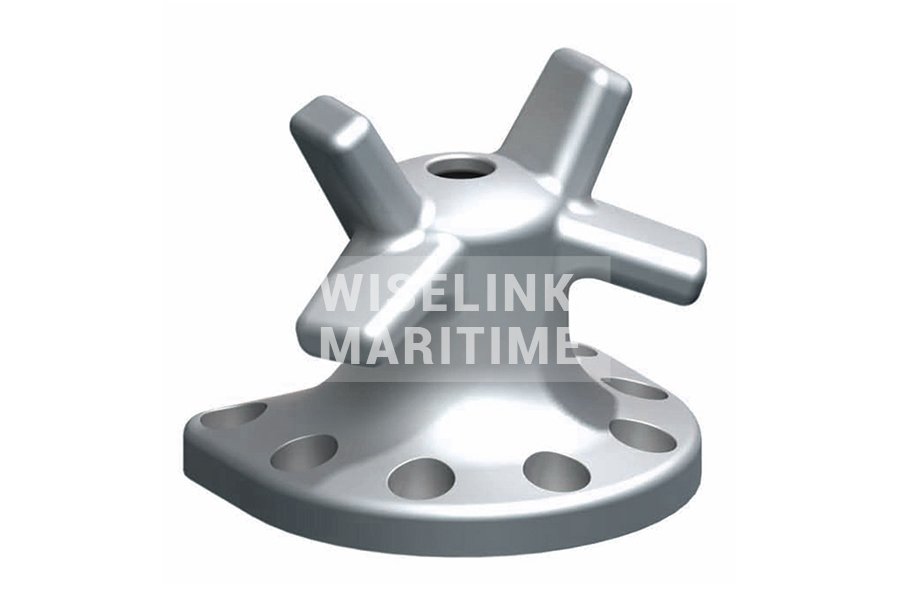

Staghorn: Specifically designed for large tidal ranges.

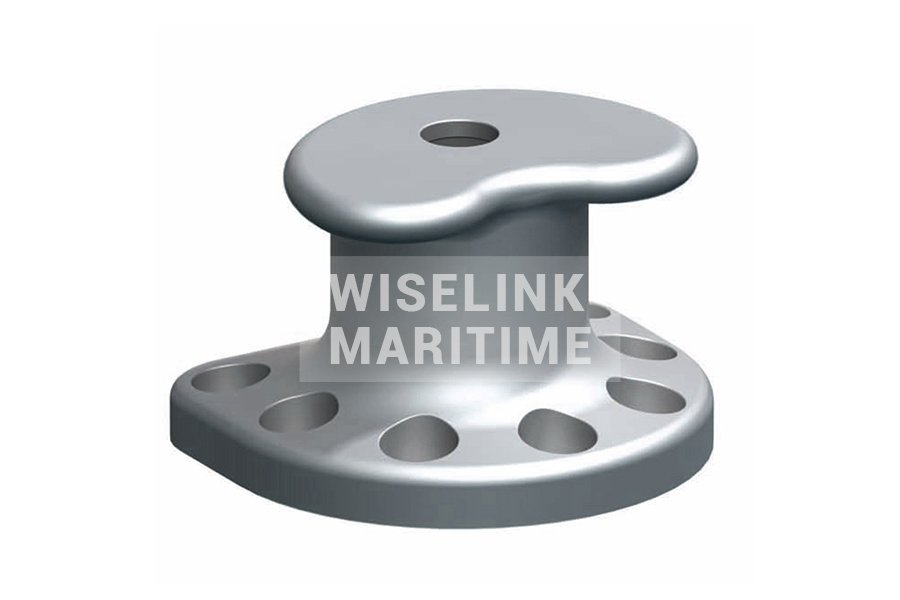

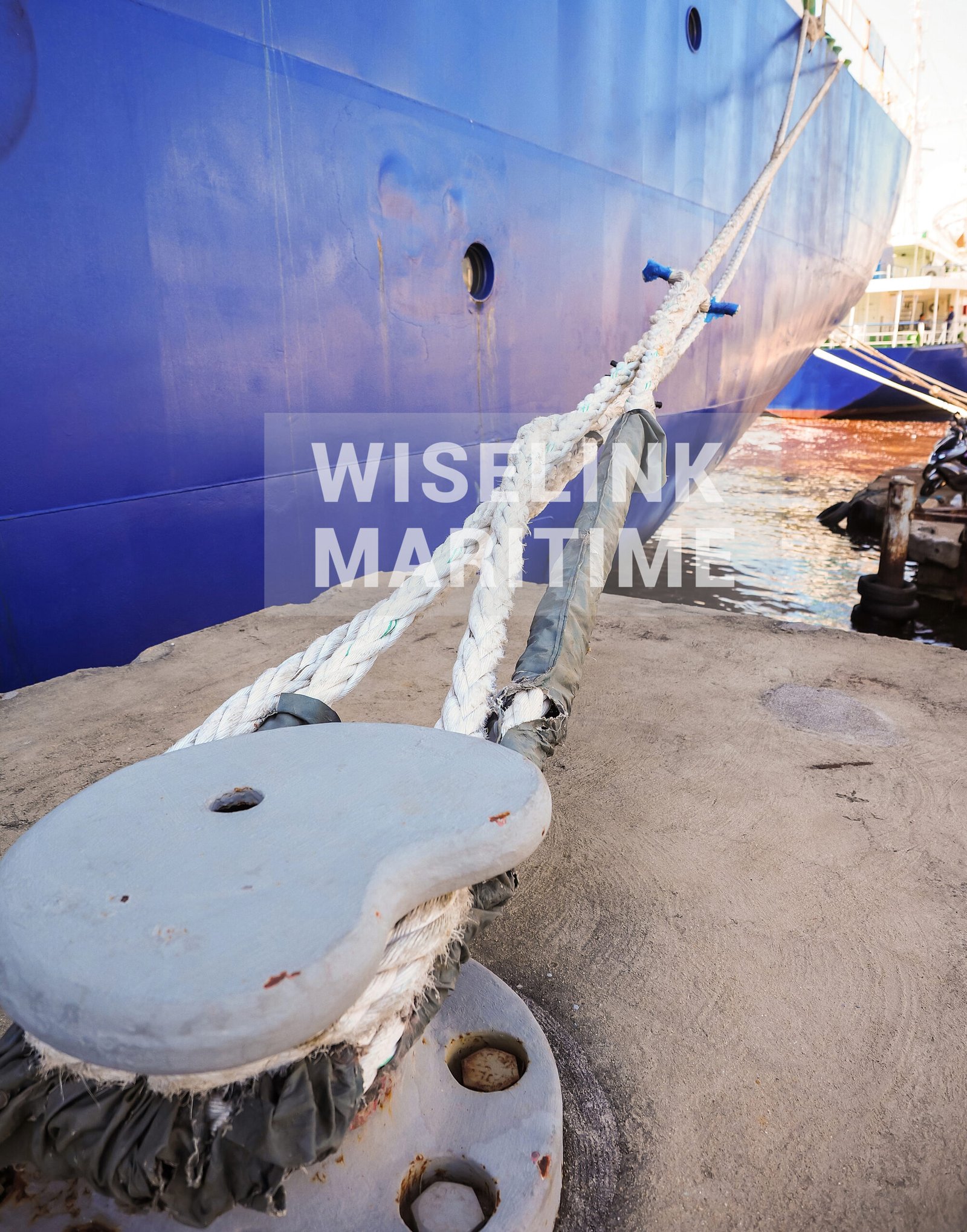

Kidney & Pillar: Traditional designs suited for smaller to medium vessels.

Products Show

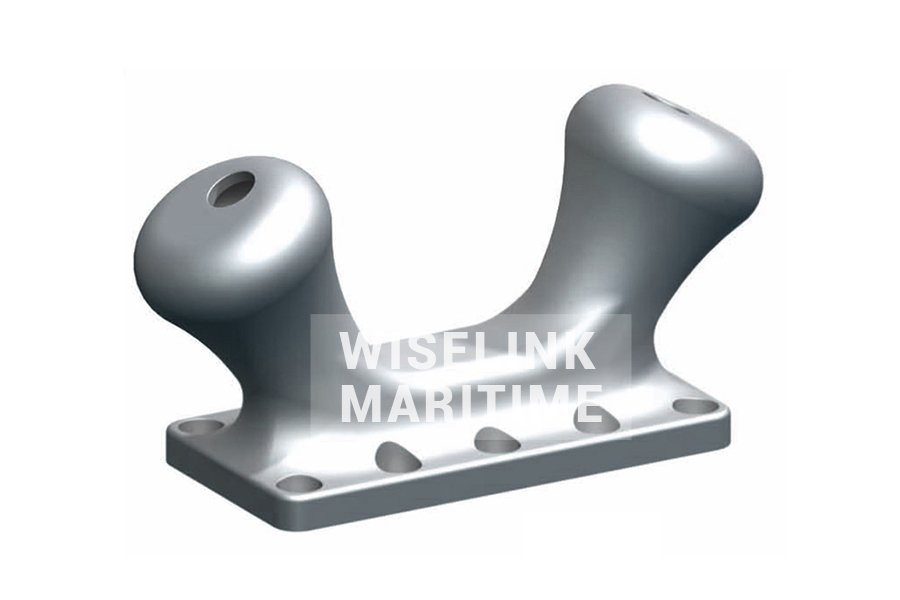

Double Bitt Bollards
Marine Bollards

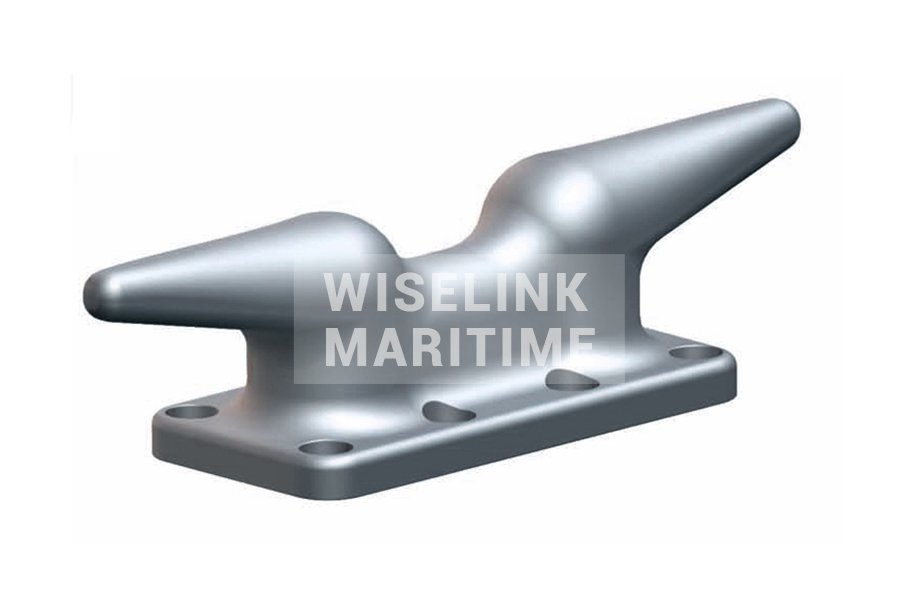

Cleats Bollards
Marine Bollards

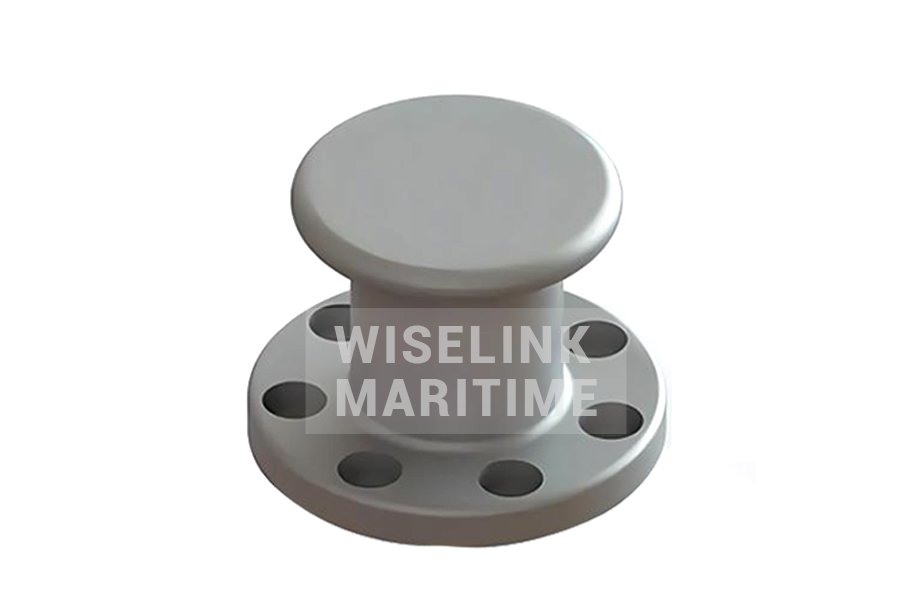

Pillar Bollard
Marine Bollards

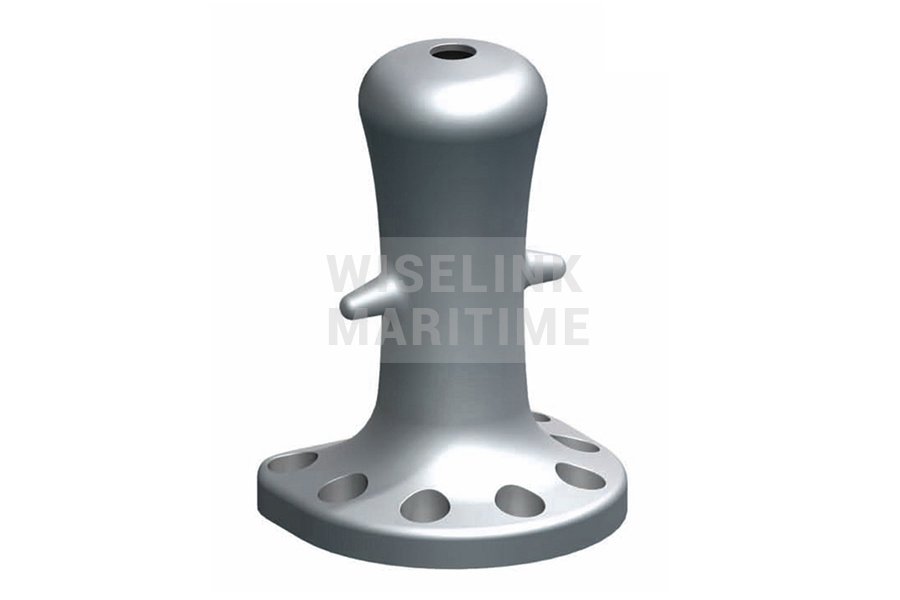

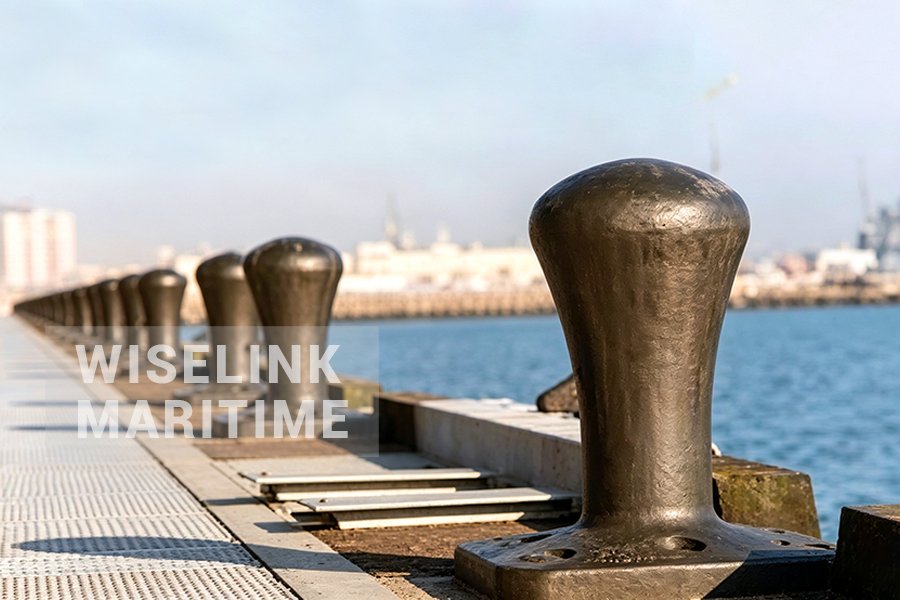

Single Bitt Bollards
Marine Bollards

Specification Parameter

  • Extreme Durability & Longevity
  • Optimized Safety Factor
  • Large Angle Versatility
  • Low Maintenance Requirement
  • Ease of Installation
  • Compliance with International Standard

Capacity

(Safe Working Load - SWL)

Base Diameter

(mm)

Height

(mm)

Bolt Diameter & Qty

(mm)

Estimated Weight

(kg)

15 Tons

450

380

4×M30

150 - 200

30 Tons

560

450

6×M36

350 - 450

50 Tons

720

620

6×M42

650 - 800

75 Tons

850

750

8×M48

950 - 1,200

100 Tons

980

850

10×M56

1,500 - 1,800

150 Tons

1,150

1,020

12×M64

2,400 - 3,000

200 Tons

1,350

1,250

14×M72

3,800 - 4,500

Application Area

Marine bollards are the fundamental anchoring points for the world’s maritime infrastructure, serving a diverse range of operational environments. Their primary application is in industrial commercial ports, including high-capacity container terminals, dry bulk berths, and oil and gas jetties, where they secure massive vessels against heavy swells and tidal surges. Additionally, they are essential for specialized maritime engineering, such as cruise ship terminals, naval shipyards, and Ro-Ro (Roll-on/Roll-off) berths that require precise mooring alignment. Beyond heavy industry, our bollards provide reliable safety for urban waterfront developments, public marinas, and inland waterway docks, ensuring stability for everything from private yachts to river barges.

Why Choose Our Marine Bollards?

Not all marine bollards are the same. Ours are engineered for safety, built for durability, and backed by 10+ years of marine expertise.
