Anchor Chains Overview

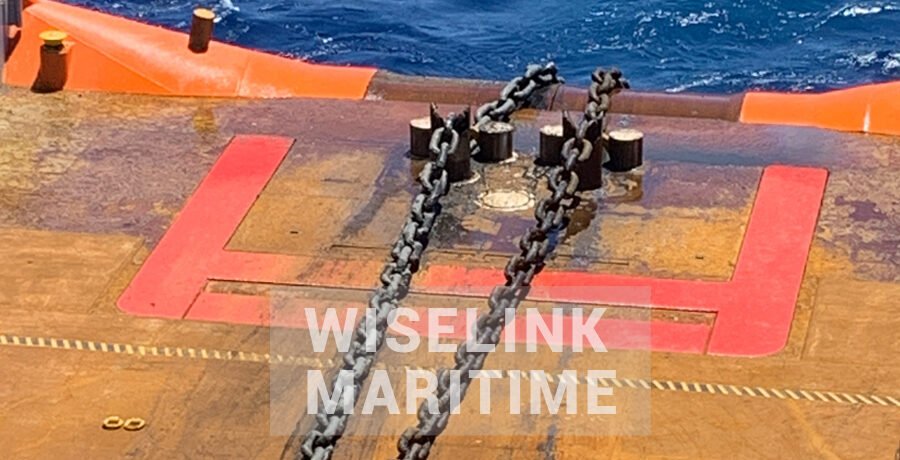

Anchor chain is a critical component of any vessel’s mooring and anchoring system. It connects the anchor to the vessel, transmits holding power from the anchor to the ship, and absorbs dynamic loads caused by waves, wind, and current. With over 10 years of marine industry experience, we supply high-quality anchor chains designed for reliability, durability, and compliance with international standards.
Anchor Chain and Mooring Chain
Anchor Chain : U1 (Grade 2), U2 (Grade 2/3), U3 (Grade 3)
Diameter : 12.5mm – 162mm
Mooring Chain (R Series)： R3, R3S, R4, R4S, R5
Diameter : Larger diameter
Products Show

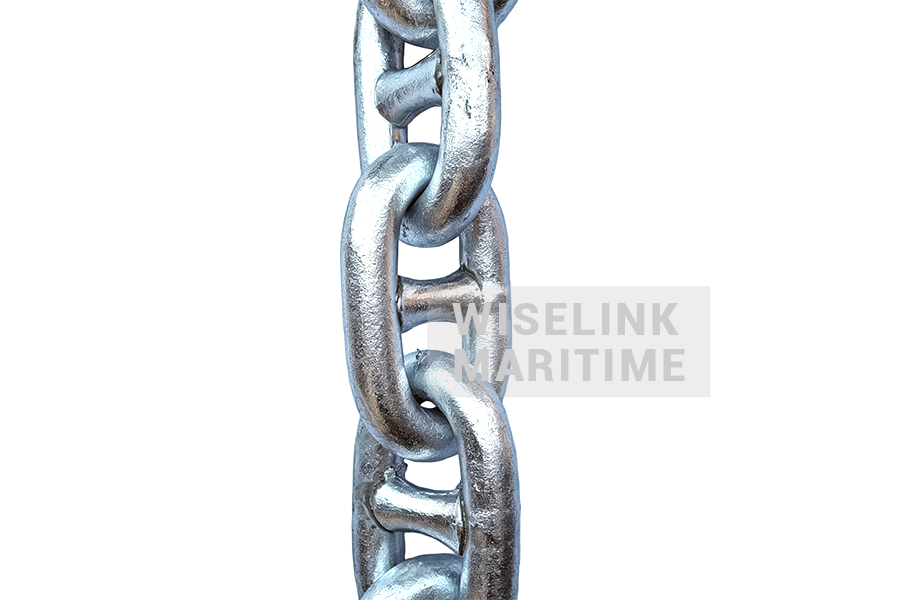

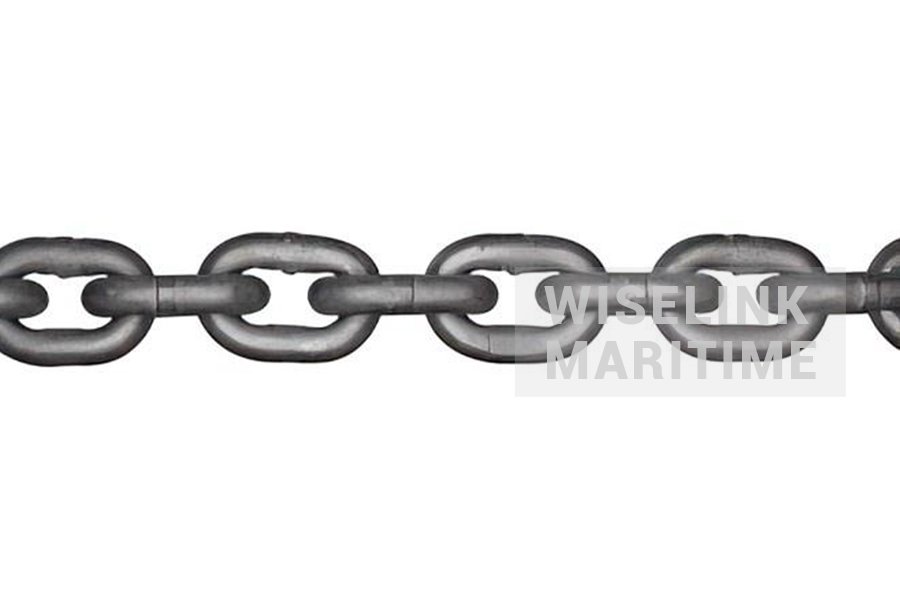

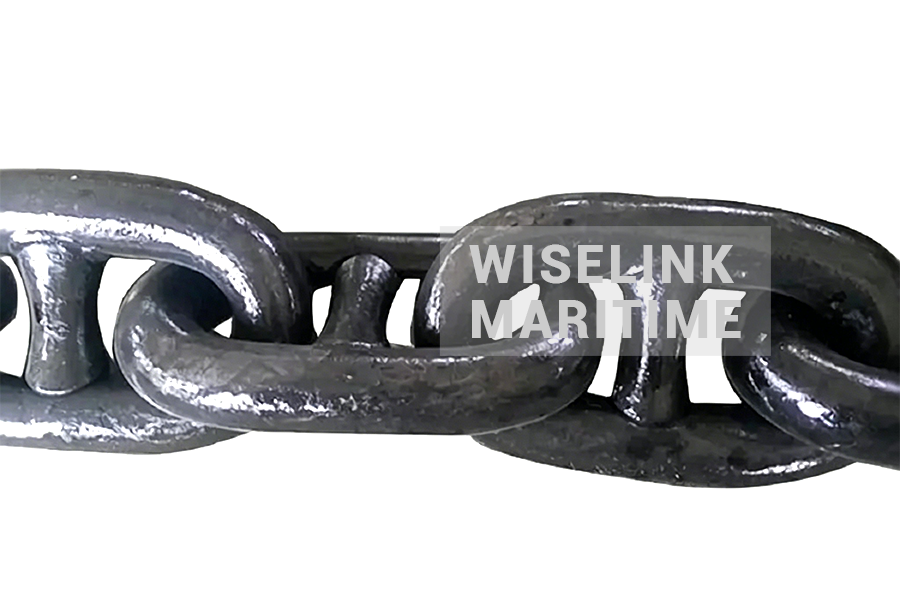

Stud Link Anchor Chain

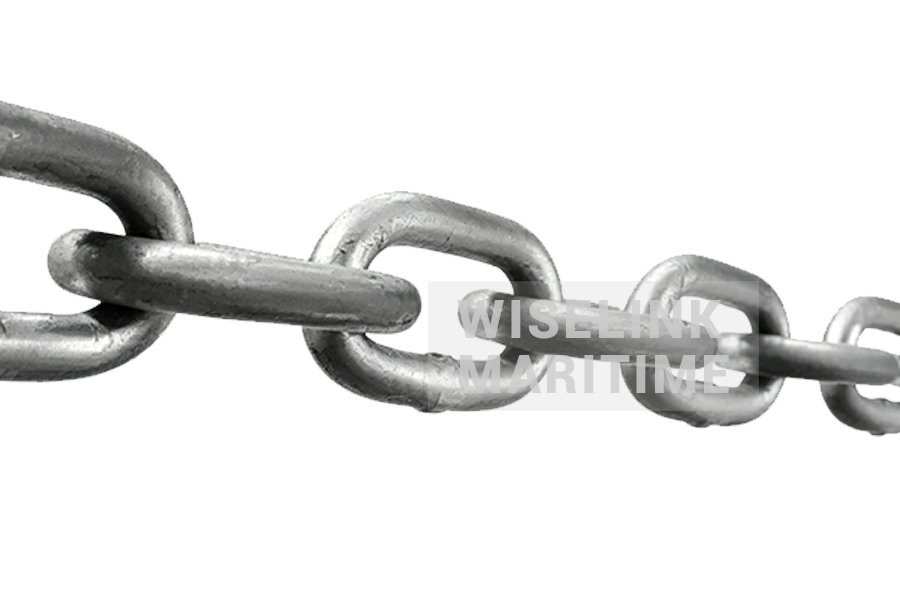

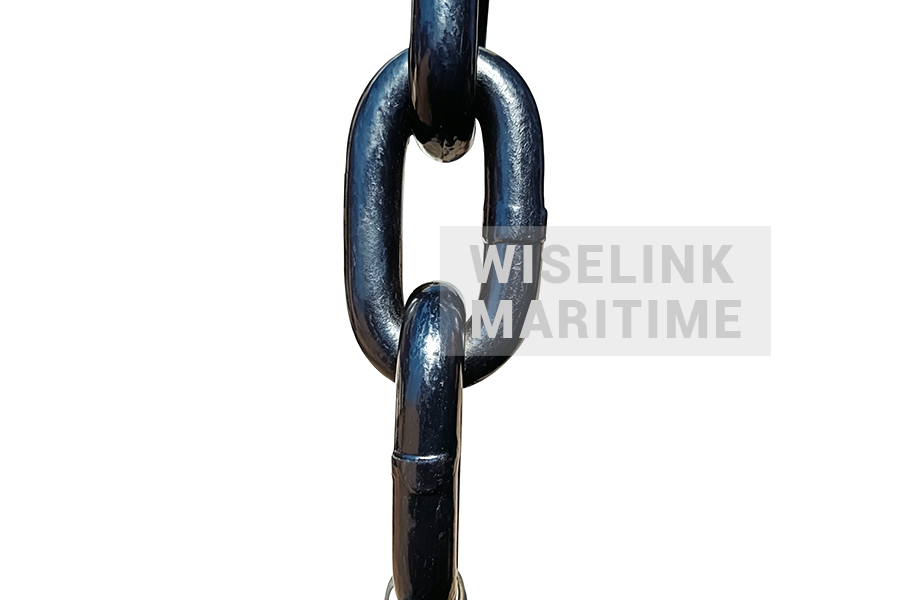

Studless Anchor Chain

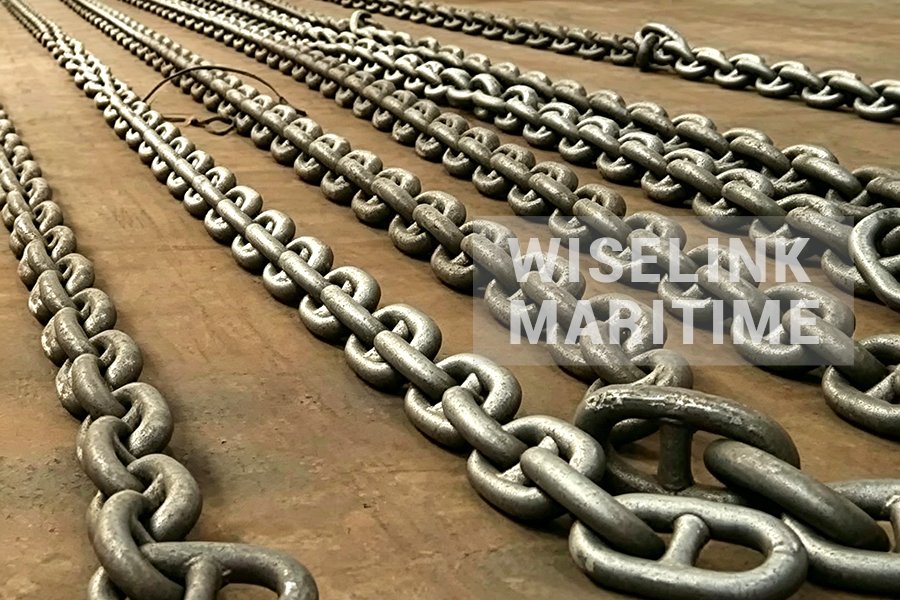

Grade2 Chain

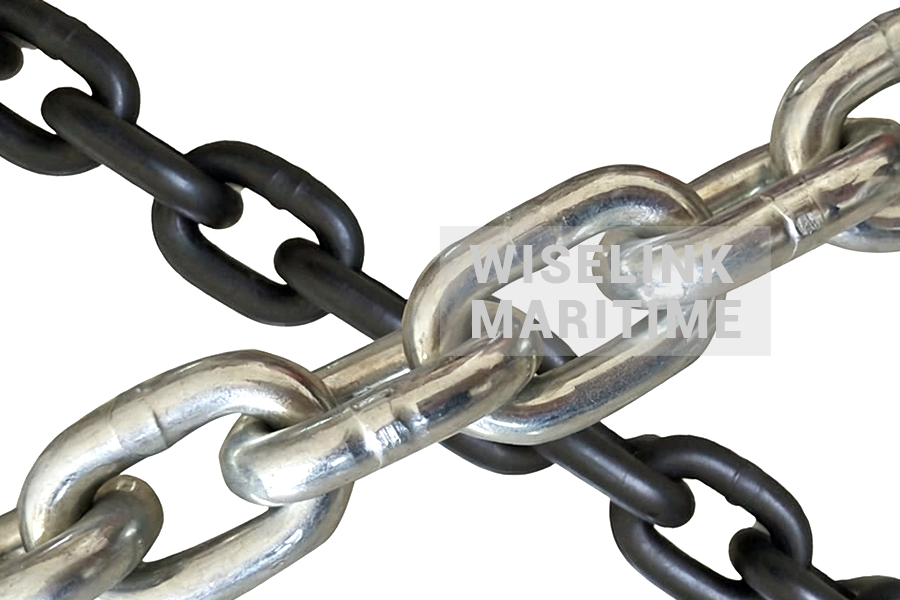

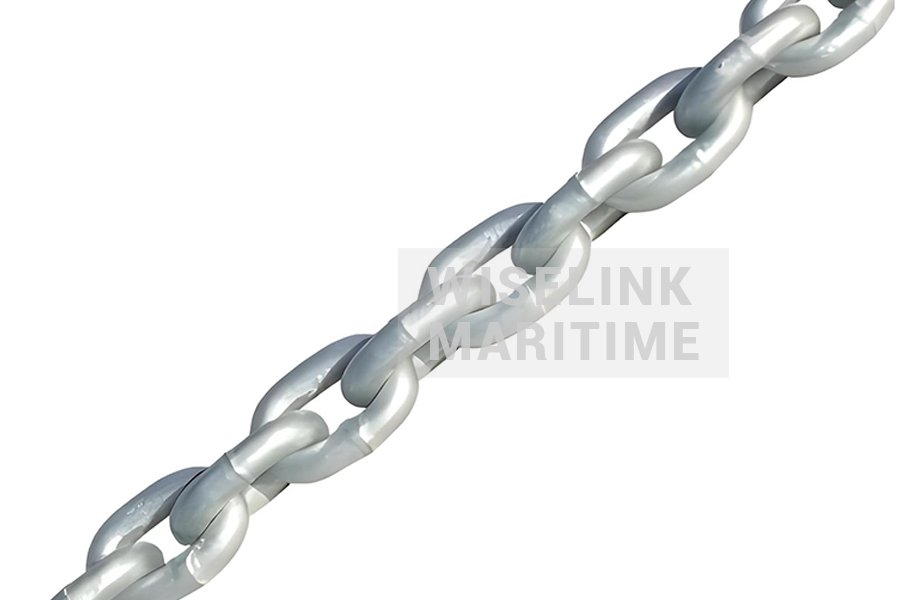

Grade3 Chain
Specification Parameter
|
Grade |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
Impact Energy (J) |
|
Grade 2 |
400 – 490 |
246 |
22 |
40 |
|
Grade 3 |
490 – 590 |
295 |
20 |
50 |
|
Grade 4 |
690 – 860 |
410 |
17 |
60 |
|
Grade 5 (R5) |
760 – 950 |
490 |
15 |
70 |
|
Grade 5 (R6) |
820 – 1000 |
530 |
15 |
75 |
|
Notes:
|
||||
|
Nominal Diameter (mm) |
Link Length (mm) |
Link Width (mm) |
Link Diameter Tolerance (mm) |
Weight (kg/m) |
|
12.5 |
37.5 |
17.2 |
+0/-0.5 |
3.0 |
|
14 |
42.0 |
19.2 |
+0/-0.6 |
3.8 |
|
16 |
48.0 |
22.0 |
+0/-0.6 |
4.9 |
|
18 |
54.0 |
24.8 |
+0/-0.7 |
6.2 |
|
20 |
60.0 |
27.5 |
+0/-0.8 |
7.6 |
|
22 |
66.0 |
30.2 |
+0/-0.9 |
9.2 |
|
24 |
72.0 |
33.0 |
+0/-1.0 |
10.9 |
|
26 |
78.0 |
35.7 |
+0/-1.0 |
12.8 |
|
28 |
84.0 |
38.5 |
+0/-1.1 |
14.8 |
|
30 |
90.0 |
41.2 |
+0/-1.2 |
17.0 |
|
32 |
96.0 |
44.0 |
+0/-1.3 |
19.3 |
|
34 |
102.0 |
46.7 |
+0/-1.4 |
21.8 |
|
36 |
108.0 |
49.5 |
+0/-1.4 |
24.4 |
|
38 |
114.0 |
52.2 |
+0/-1.5 |
27.2 |
|
40 |
120.0 |
55.0 |
+0/-1.6 |
30.1 |
|
42 |
126.0 |
57.7 |
+0/-1.7 |
33.2 |
|
44 |
132.0 |
60.5 |
+0/-1.8 |
36.4 |
|
46 |
138.0 |
63.2 |
+0/-1.8 |
39.8 |
|
48 |
144.0 |
66.0 |
+0/-1.9 |
43.3 |
|
50 |
150.0 |
68.7 |
+0/-2.0 |
47.0 |
|
52 |
156.0 |
71.5 |
+0/-2.1 |
50.9 |
|
54 |
162.0 |
74.2 |
+0/-2.2 |
54.9 |
|
56 |
168.0 |
77.0 |
+0/-2.2 |
59.1 |
|
58 |
174.0 |
79.7 |
+0/-2.3 |
63.4 |
|
60 |
180.0 |
82.5 |
+0/-2.4 |
67.9 |
|
62 |
186.0 |
85.2 |
+0/-2.5 |
72.5 |
|
64 |
192.0 |
88.0 |
+0/-2.6 |
77.3 |
|
66 |
198.0 |
90.7 |
+0/-2.6 |
82.2 |
|
68 |
204.0 |
93.5 |
+0/-2.7 |
87.3 |
|
70 |
210.0 |
96.2 |
+0/-2.8 |
92.5 |
|
73 |
219.0 |
100.3 |
+0/-2.9 |
100.5 |
|
76 |
228.0 |
104.5 |
+0/-3.0 |
108.7 |
|
78 |
234.0 |
107.2 |
+0/-3.1 |
115.0 |
|
81 |
243.0 |
111.4 |
+0/-3.2 |
124.5 |
|
84 |
252.0 |
115.5 |
+0/-3.4 |
133.5 |
|
87 |
261.0 |
119.6 |
+0/-3.5 |
143.0 |
|
90 |
270.0 |
123.7 |
+0/-3.6 |
153.0 |
|
95 |
285.0 |
130.5 |
+0/-3.8 |
170.0 |
|
100 |
300.0 |
137.5 |
+0/-4.0 |
188.0 |
|
105 |
315.0 |
144.3 |
+0/-4.2 |
207.0 |
|
110 |
330.0 |
151.2 |
+0/-4.4 |
227.0 |
|
115 |
345.0 |
158.0 |
+0/-4.6 |
248.0 |
|
120 |
360.0 |
165.0 |
+0/-4.8 |
270.0 |
|
Notes:
|
||||
Application Area

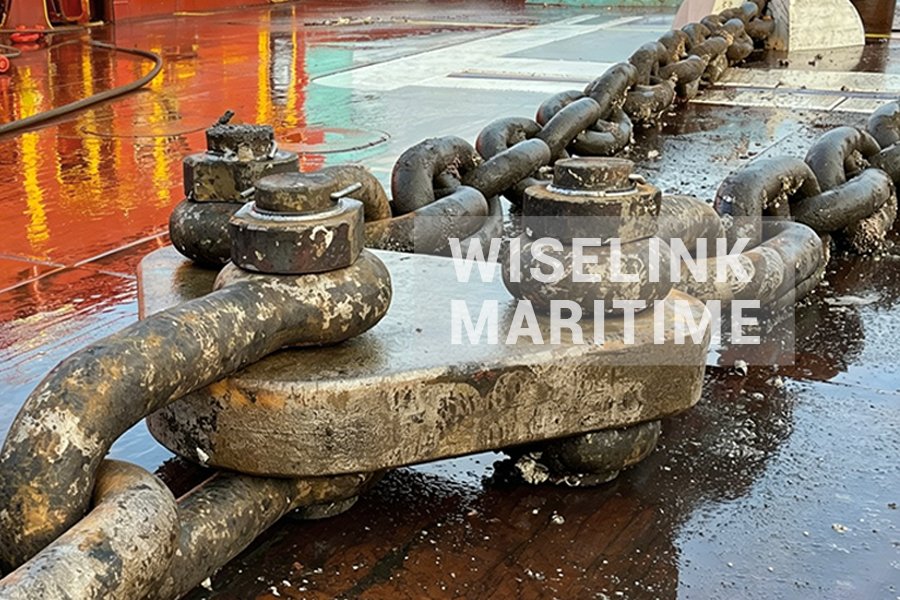

Anchor chains are essential marine components widely used for ship anchoring, offshore platform mooring, and vessel positioning. They serve various fields including commercial shipping, fishing vessels, port engineering, offshore wind power, and other marine infrastructure, providing reliable connection and fixation in harsh ocean environments.
